Summary
The three LEDs on the SDX-PocketScan receiver show battery state, Bluetooth connection state, RTK FIX availability, and GNSS time availability. This article explains what each LED position, color, and blinking pattern means so you can quickly identify the receiver status.
Introduction
The SDX-PocketScan receiver uses three LEDs to communicate its current state.
- LED1 (outer): Main RGB status LED for charging state, Bluetooth state, touch feedback, correction-data activity, and system errors.
- LED2 (middle): Blue LED that turns on when the receiver has an RTK FIX.
- LED3 (inner): Orange LED that starts blinking when the receiver has valid GNSS time information.
When the receiver is turned off and connected to power, LED1 is used only for battery and charging indication.
Prerequisites
No setup is required to read the LEDs. Make sure you can clearly see the three LEDs on the receiver and note whether the receiver is turned off and charging or turned on and active.
LED behavior overview
This article is an overview of the LED behavior rather than a setup workflow. Use the sections below to match the active LED, color, and blinking pattern to the receiver state.

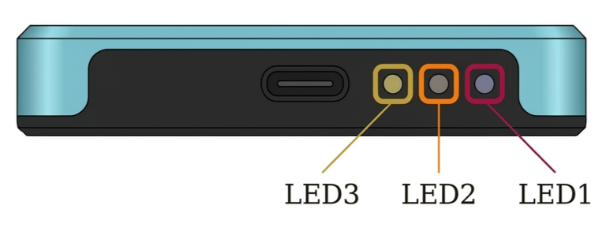

LED positions
- LED1 (outer): Main RGB status LED.
- LED2 (middle): Blue RTK FIX LED.
- LED3 (inner): Orange GNSS time LED.
LED1 status and behavior
| LED1 behavior | Receiver state | Meaning |
|---|---|---|
| Solid red | Charging | The receiver is turned off, connected to USB power, and the battery charge is below 20%. |
| Solid orange | Charging | The receiver is turned off, connected to USB power, and the battery charge is between 20% and 95%. |
| Solid green | Charging | The receiver is turned off, connected to USB power, and the battery charge is above 95%. |
| Blinking blue | Bluetooth pairing mode | The receiver is turned on and ready for a wireless connection. |
| Fast blinking blue | Bluetooth connection initializing | Bluetooth is connected and the receiver is starting the connection and GNSS module. |
| Solid blue | Bluetooth connected | Bluetooth is connected and the receiver is fully ready. |
| Purple impulse | Transient feedback | A touch gesture was detected on the touch sensor. |
| Short cyan impulse | Bluetooth connected | Valid correction data was received. |
| Red impulse | Bluetooth connected | The battery dropped below the low threshold or a USB charging cable was disconnected. |
| Orange impulse | Bluetooth connected | The battery moved into the medium charge range. |
| Green impulse | Bluetooth connected | The battery reached full charge or a USB charging cable was connected. |
| Fast blinking orange | Error | An unhandled system error occurred. Reset the receiver to recover. |
LED2 and LED3
- LED2 (middle, blue): Lights up when the receiver has successfully obtained an RTK FIX.
- LED3 (inner, orange): Starts blinking when the receiver has received valid GNSS time information.
Power-on and charging behavior
- To power on the receiver with the touch sensor, press for about 1 second until you see the purple impulse on LED1.
- Release for about 0.5 seconds.
- Press and hold again until LED1 starts blinking blue.
- If the receiver is turned off and plugged into power, LED1 only shows battery state with solid red, orange, or green.
Limits and notes
- LED1 can briefly overwrite its normal state to show touch feedback, correction-data activity, or battery-threshold changes.
- A fast blinking orange LED1 indicates a system error that requires a reset.
- While the receiver is charging and turned off, connection-state indications are not shown on LED1.
