What this guide covers
This article explains how to mechanically mount and electrically connect the SDX-Compact to your machine. Follow each step in order to ensure secure mounting and reliable operation.
Before you start
Disconnect the battery disconnect switch before connecting any cables. Check for a voltage-free condition and secure the system against re-activation.
Disconnect the battery disconnect switch before connecting any cables. Check for a voltage-free condition and secure the system against re-activation.

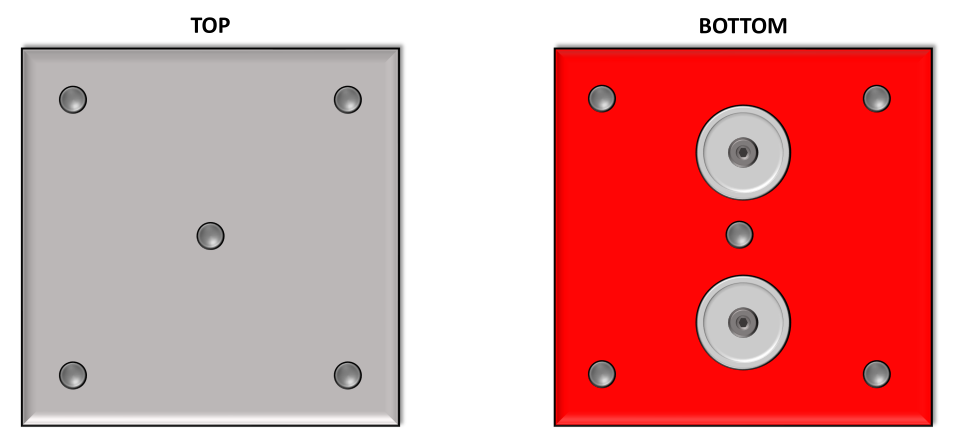

Mounting Plate Overview
Important
Do not remove the red protective film from the underside of the mounting plates until you have aligned the SDX-Compact in the desired position. Remove the film only after rough alignment is complete.
Do not remove the red protective film from the underside of the mounting plates until you have aligned the SDX-Compact in the desired position. Remove the film only after rough alignment is complete.

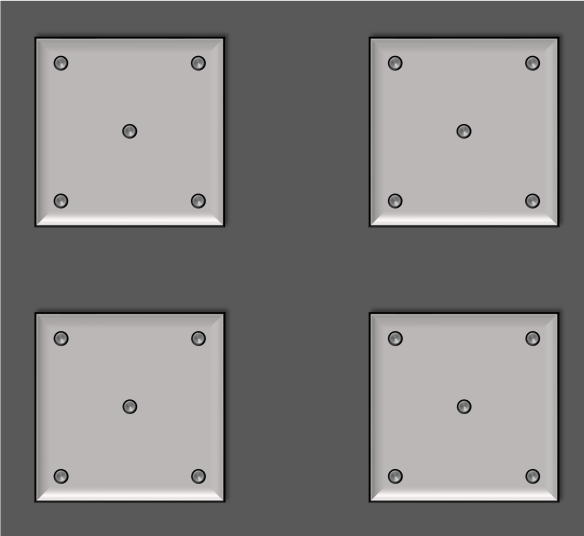

Step 1 – Position the Mounting Plates
- Position the four mounting plates at the desired location on the machine.
- Mount the plates only on metallic surfaces.
- Ensure each plate is fully supported by the surface.
Mounting restriction
Mounting on (plexi) glass or plastic components is not allowed. It is only permitted after consultation with a trained Sodex installer.
Mounting on (plexi) glass or plastic components is not allowed. It is only permitted after consultation with a trained Sodex installer.

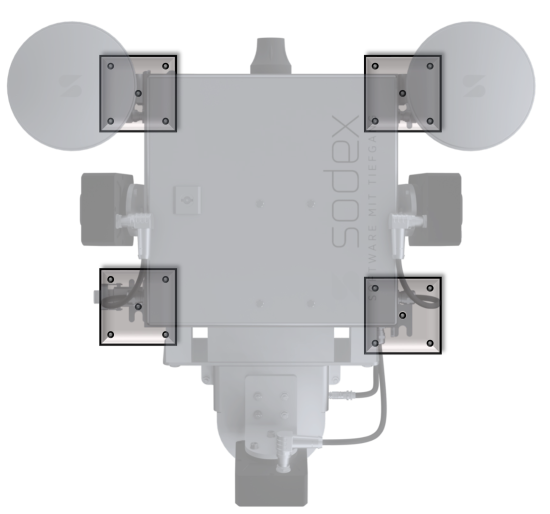

Step 2 – Align the SDX-Compact
- Place the SDX-Compact on the mounting plates.
- Align the holes of the SDX-Compact bracket with the holes of each mounting plate.
- Use the designated mounting holes for proper alignment.

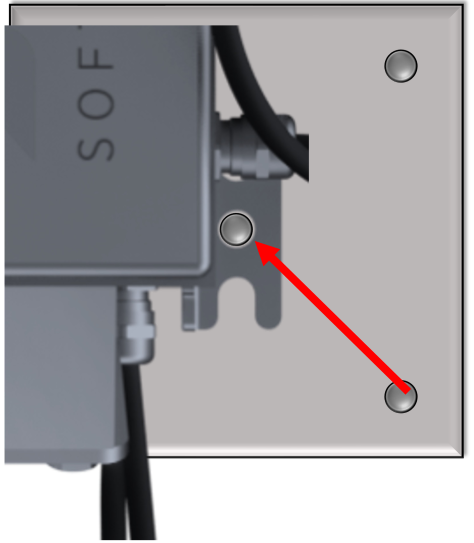

Step 3 – Adjust and Mark Positions
- Adjust each mounting plate so it aligns with one of the five available mounting holes.
- Insert a screw or threaded rod into the holes to verify alignment.
- Remove the SDX-Compact.
- Mark the final positions of all mounting plates.

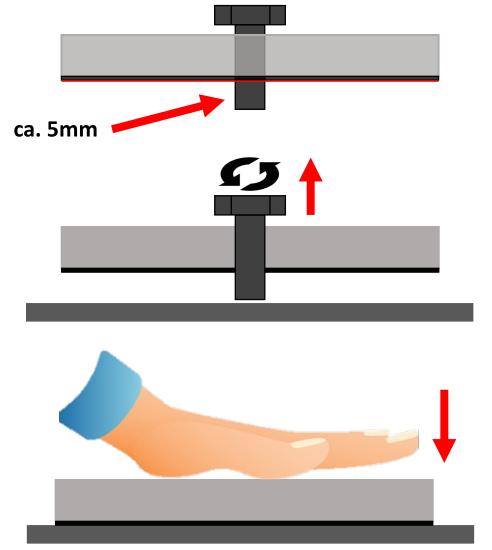

Step 4 – Fix the Mounting Plates
- Insert an M8 threaded rod or screw approximately 5 mm (approx. 0.2 in) through the mounting plate so it protrudes on the opposite side.
- Remove the red protective film from the adhesive tape.
- Place the mounting plates onto the previously marked positions.
- Slowly release the screws so the plates lie flat.
Pressing time
After the plates lie flat on the surface, press them firmly for approximately 20 seconds.
If mounting on a non-magnetic surface, press for about 1 minute.
After the plates lie flat on the surface, press them firmly for approximately 20 seconds.
If mounting on a non-magnetic surface, press for about 1 minute.

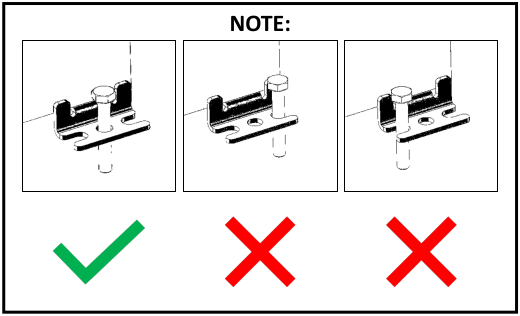

Step 5 – Compensate Height Differences (If Required)
- Check whether all four mounting points are at the same height.
- If plates are mounted at different heights, insert a washer under the SDX-Compact bracket.
- If the SDX-Compact does not rest evenly on all four contact points, use washers for stabilization.
Step 6 – Secure the SDX-Compact
- Fasten the SDX-Compact using an M8 screw or threaded rod.
- Always use a washer.
Threaded rod notice
If using a threaded rod, apply thread locker.
Tighten the nut only 10 minutes after securing the threaded rod.
If using a threaded rod, apply thread locker.
Tighten the nut only 10 minutes after securing the threaded rod.

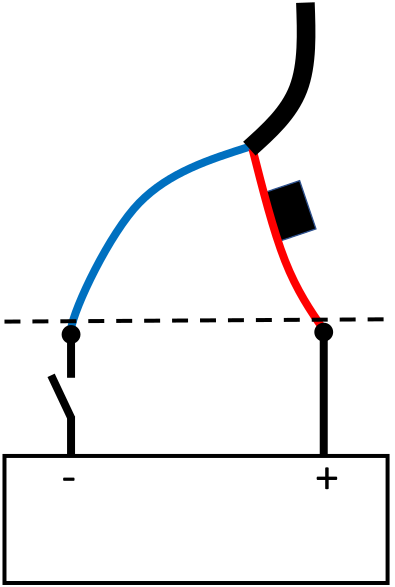

Step 7 – Electrical Connection
- Connect the SDX-Compact at the battery disconnect switch.
- Connect the red fuse holder to the positive terminal.
- Connect the blue cable after the disconnect switch.
- Plug in the SDX-Compact only after the cable is fully connected.
⚠ Electrical safety
• Disconnect the battery disconnect switch before connecting the cable.
• Ensure the system is voltage-free.
• Secure against accidental re-activation.
• Disconnect the battery disconnect switch before connecting the cable.
• Ensure the system is voltage-free.
• Secure against accidental re-activation.
Installation Notes & Best Practices
GNSS & LTE signal
Ensure there are no obstructions around the GNSS or LTE antennas. Metallic elements higher than the GNSS antenna can significantly impair functionality.
Ensure there are no obstructions around the GNSS or LTE antennas. Metallic elements higher than the GNSS antenna can significantly impair functionality.
- Avoid mounting near hot components such as ventilation grilles, exhausts, or heating elements.
- Keep a minimum distance of 1 meter (approx. 3.3 ft) from other radio antennas.
- Test other electronic components before final commissioning to ensure no interference occurs.
- Do not connect the SDX-Compact to the ignition. Voltage drops during engine start may cause errors.
- Ensure the line of sight of the laser scanner is not blocked.
Support
For further questions or issues, contact your Sodex representative or support@sodex.at.
For further questions or issues, contact your Sodex representative or support@sodex.at.
