Project Overview Page

Overview

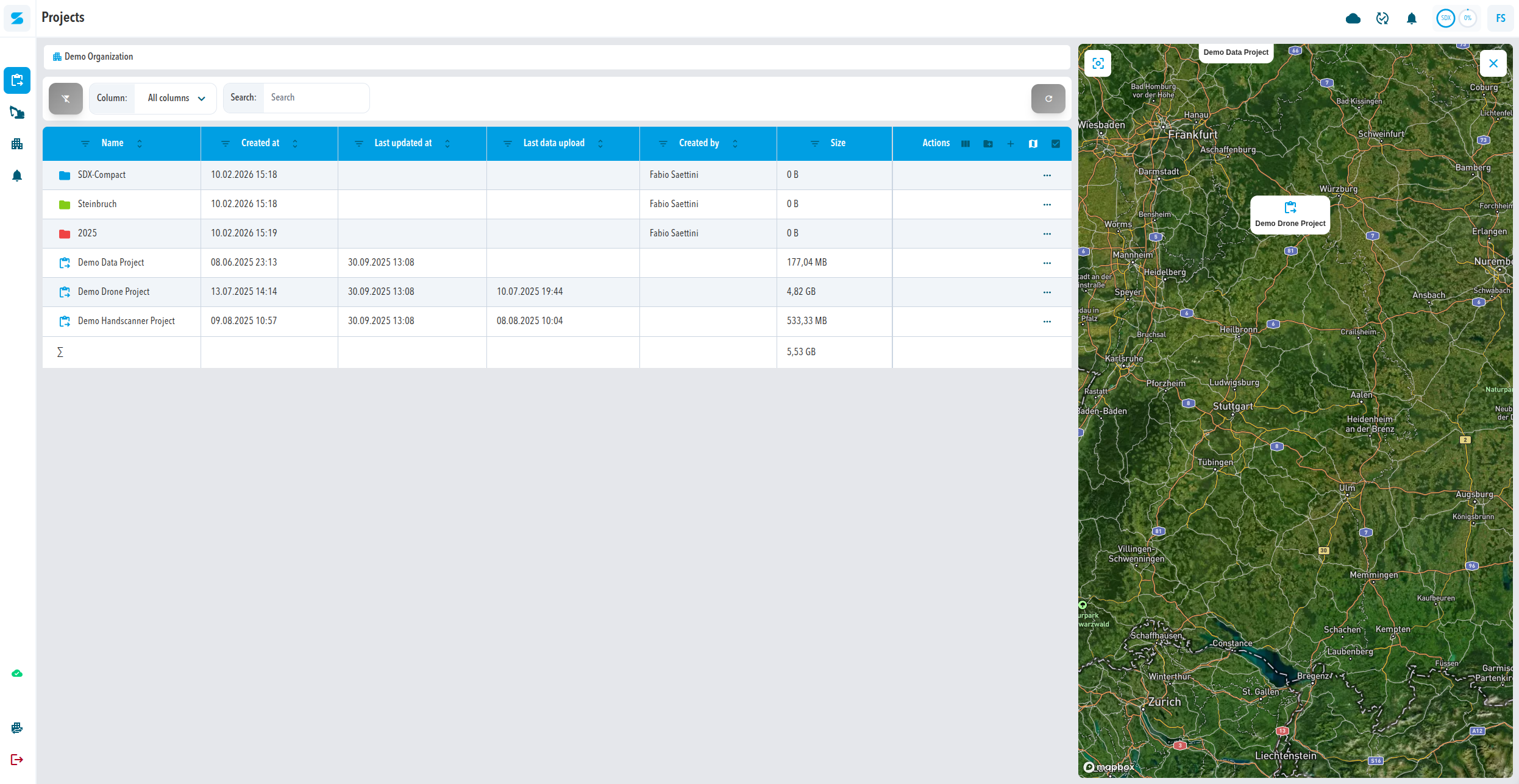

The Project Overview page gives you a single place to browse and manage projects in SDX-Cloud. It combines a searchable project list and an interactive map in one view.

The project list is shown on the left. The map is shown on the right. You can drag the divider between them to resize the panels and focus on the list or the map.

Features

Combined list and map

The Project Overview shows the project list and map side-by-side. This lets you browse projects in the list and see their locations at the same time.

Projects can be highlighted between the list and map (for example, selecting a project in the list can highlight its marker on the map).

Project list with search and sorting

The list shows projects in rows with key information in columns.

You can sort the list by clicking a column header (click again to reverse the sort). Use the search bar to find projects quickly. Search also includes projects in subfolders. Use the dropdown next to search to limit the search to a specific column.

Interactive map

The map shows each project as a pin (or a cluster if projects are close together). You can pan and zoom to explore different regions.

Clicking a project pin typically highlights the project in the list and may show a small preview.

Folders

You can organize projects into folders to keep large project lists manageable. Folders can contain projects and sub-folders. Expand or collapse folders in the list to navigate your hierarchy.

Toolbar actions

The toolbar at the top of the page provides quick actions and view options. Common actions include:

• Add Folder to create a new folder.
• Add Project to create a new project.
• Show/Hide Columns to choose which columns appear in the list.
• Toggle Map to show or hide the map panel.
• Multi-select to select multiple projects or folders for bulk actions.

Folder and project actions

You can manage projects and folders directly from the project list using toolbar buttons and the actions menu (the … menu at the end of a row).

Create a project or folder

To create a project, select Add Project on the toolbar and fill in the required details. To create a folder, select Add Folder and enter a folder name.

Actions menu (…)

The actions menu provides item-specific options.

• Projects support actions such as Open, Rename, Move, and Delete.
• Folders support actions such as Rename, Move, and Delete.

Multi-select and bulk actions

Use Multi-select to select multiple projects or folders and perform actions in bulk.

View customization

You can tailor the Project Overview layout and columns to match your workflow.

Resize the list and map

Drag the divider between the list and map to resize the panels.

Hide or show the map

Use the map toggle button in the toolbar to hide the map and use a full-width project list. Select it again to restore the map.

Choose visible columns

Use Show/Hide Columns to choose which columns appear. If supported, you can also reorder columns by dragging the column headers.

FAQ

How do I hide or show the map?

Use the map toggle button in the top toolbar. It hides the map panel and expands the list to full width. Select it again to show the map.

Can I adjust the size of the list and map?

Yes. Drag the divider between the list and map left or right to resize the panels.

How do I create a new project?

Select Add Project in the toolbar, enter the project details, and create the project. You may need the required permissions to see or use this option.

How do I organize projects into folders?

Create a folder using Add Folder, then move projects into it using the project actions menu (… → Move). If supported, you can also drag projects onto a folder.

What’s the difference between a project and a folder?

A project contains data and opens into a workspace. A folder is an organizational container that groups projects (and possibly sub-folders).

Why do I see a number on a map marker?

A numbered marker is a cluster. It represents multiple projects close together. Zoom in to see individual project pins.

Why is “Delete Folder” greyed out?

Folders usually can only be deleted when empty. Move or delete the contents first, then try again.

Will my view settings persist?

In most cases, yes. SDX-Cloud typically saves your Project Overview preferences (map visibility, column selections, and order) for your user account.
